What is a Structural Drawing and Why Your Contractor Needs One?

Most homeowners in Indore review the architectural floor plan carefully — rooms, doors, windows. The structural drawing barely gets a look.

That's a problem. Because the structural drawing is what decides whether your building is actually safe. In Indore's Seismic Zone III, this isn't paperwork. It's engineering.

Structural Drawing vs Architectural Drawing — The Difference

Architectural drawing = what your building looks like. Rooms, doors, windows, elevations. Prepared by an architect.

Structural drawing = what holds your building up. Columns, beams, slabs, foundations, steel reinforcement. Prepared by a licensed structural engineer.

Both are required. One without the other is an incomplete, and potentially dangerous, project.

What's Inside a Structural Drawing Set?

Foundation Plan Shows foundation type, depth, and footing dimensions. Critical in Indore — the city's black cotton soil swells and shrinks with moisture. Without a proper foundation design, differential settlement causes cracks that are expensive to fix.

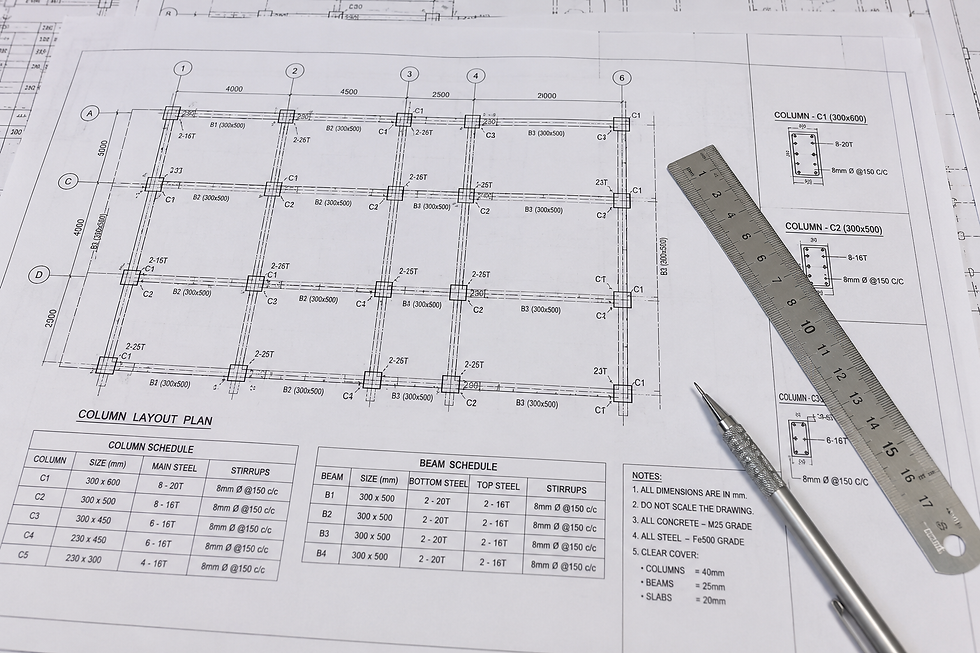

Column Layout Plan Shows every column's position, size (e.g. 230×450 mm), number of bars, bar diameter, and stirrup spacing. This is what your contractor should be building to — not guesswork.

Beam Layout Plan Shows beam positions, sizes, and reinforcement. Beam sizing determines how far you can span between columns — important for open plan rooms.

Slab Reinforcement Drawing Shows bar diameter, spacing, and arrangement inside each slab. Once concrete is poured, nothing inside is visible again. This drawing is your only verification tool.

Bar Bending Schedule (BBS) A complete list of every steel bar to be cut and bent — diameter, shape, length, quantity. This is what prevents contractors from using thinner bars than designed without you knowing.

What Happens Without One?

This is where most Indore projects go wrong. Many duplexes and G+2 homes are still built on the contractor's "standard practice" — no engineer involved, no calculations done.

The consequences:

• Undersized columns — may hold one floor but fail structurally if you add a second floor later.




• Wrong steel — Fe415 used instead of Fe500D, fewer bars than needed, wider stirrup spacing than required for seismic resistance.




• Foundation failure — insufficient depth in Indore's black cotton soil causes sinking and cracking.




• Seismic risk — poorly detailed RCC structures are the primary cause of casualties in Indian earthquakes. Indore is Zone III.




None of this is visible until it fails.

What It Costs — and What It's Worth

For a standard residential duplex or G+2 home in Indore:

Structural drawing fee: ₹30,000 – ₹75,000

That is roughly 0.2–0.5% of your total construction cost.

What you get in return:

• Correct sizing for your specific building and soil.

• A BBS to verify steel usage on site at every stage.

• A foundation design appropriate for Indore's soil type.

• IMC-compliant documentation.

• A licensed engineer who carries professional liability for the design.




It's a Mandatory IMC Requirement — Not Optional

For any building plan submission to the Indore Municipal Corporation, a structural drawing signed and certified by a licensed structural engineer is required. No exceptions for new construction, floor additions, or structural modifications.

If your contractor says structural drawings aren't needed — ask to see the approved plan documents with the structural engineer's stamp. If it's not there, the approval has a gap that leaves you legally and physically exposed.

How to Actually Use It on Site

Having the drawing is only useful if someone checks against it:

• Foundation stage — verify footing depth and dimensions before pouring.




• Before column casting — check bar count, diameter, and stirrup spacing.




• Before slab casting — check bar diameter and spacing. This is the most important checkpoint.




• Track steel usage — compare actual deliveries against the BBS. Big deviations = material substitution.




You don't need to read the drawings yourself. A third-party civil engineer doing a one-day site visit at each structural stage costs ₹5,000–₹15,000 and catches most problems before they become permanent.

Build on Engineering, Not on Trust Alone

A contractor's experience is valuable. But experience is not the same as engineering. A structural drawing is the document that converts your contractor's work into a verified, calculated, accountable structure.

Shriketu Construction Pvt. Ltd. coordinates with licensed structural engineers on every project in Indore — structural drawings prepared before construction, BBS used on site, and key stages verified against approved drawings. If you want that level of accountability built into your project from day one, they're worth talking to.

Quick Summary

What	Why It Matters
Foundation Plan	Right depth for Indore's black cotton soil
Column Layout	Correct size and steel for your load
Beam Layout	Safe spans, no guesswork
Slab Drawing	Verify reinforcement before concrete covers it
Bar Bending Schedule	Prevent steel substitution fraud
IMC Requirement	Mandatory for plan approval in Indore
Cost	₹30,000–₹75,000 for residential project

The rule: No structural drawing means no way to verify what's inside your walls. Build with one. Always.
